k8s node NotReady：NetworkReady=false reason:NetworkPlugin NotReady；cni plugin not initialized

kubectl obtains the node node. When detecting the cluster status, the master and node are always in the NotReady state.

[root@master ~]# kubectl get nodes
NAME     STATUS     ROLES           AGE   VERSION
master   NotReady   control-plane   27m   v1.26.3
node     NotReady   <none>          80s   v1.26.3

Check the pod status and find that coredns has been in the pending state.

[root@master ~]# kubectl get pods --all-namespaces
NAMESPACE     NAME                                  READY       STATUS         RESTARTS   AGE
kube-system   coredns-787d4945fb-rms8q      0/1             Pending               0             27m
kube-system   coredns-787d4945fb-v9l5l         0/1             Pending               0             27m
kube-system   etcd-master                               1/1             Running                0            27m
kube-system   kube-apiserver-master               1/1            Running                0            27m
kube-system   kube-controller-manager-master   1/1         Running                0            27m
kube-system   kube-proxy-5x74j                         1/1           Running                0            27m
kube-system   kube-proxy-fjwv6                        1/1             Running               0          2m11s
kube-system   kube-scheduler-master               1/1             Running               0          27m

View the kuberctl.services log

[root@master ~]# journalctl -f -u kubelet.service
-- Logs begin at Mon 2023-04-03 09:15:16 UTC. --
Apr 03 09:51:07 master kubelet[12129]: E0403 09:51:07.926060   12129 kubelet.go:2475] "Container runtime network not ready" networkReady="NetworkReady=false reason:NetworkPluginNotReady message:Network plugin returns error: cni plugin not initialized"

Reason: Missing network plug-in, deploy flannel network plug-in

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

If not, you can try calico

curl https://docs.projectcalico.org/manifests/calico-typha.yaml -o calico.yaml

kubectl apply -f calico.yaml

If the calico above does not work then go to the link https://github.com/projectcalico/calico/blob/master/manifests/calico.yaml and paste a new calico

Check the pod status again and you can see that the status is normal.

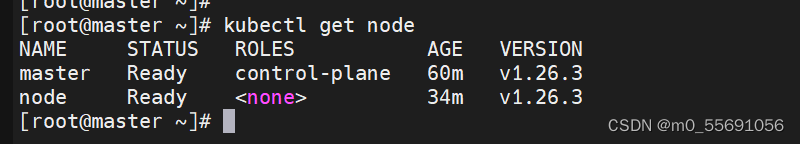

Check status - normal

Reference link: https://kubernetes.io/docs/setup/production-environment/tools/kubeadm/create-cluster-kubeadm/#pod-network
