helm deploy rabbitmq

helm deploy rabbitmq

1. Add rabbitmq warehouse and download the package

    helm repo add bitnami https://charts.bitnami.com/bitnami
    helm pull bitnami/rabbitmq --version 10.1.4
    tar -zxvf rabbitmq-10.1.4.tgz
    mv values.yaml values.yaml.back
    grep -v "#" values.yaml.back > values.yaml


2. Helm deployment service and default rabbitmq/values.yaml modification
can modify the specified version of rabbitmq

    image:
      registry: docker.io
      repository: bitnami/rabbitmq
      tag: 3.10.5-debian-10-r0



If you do not mount the persistent disk, you can modify persistence to false.

    persistence:
      enabled: false
      storageClass: ""
      selector: {}
      accessModes:
        - ReadWriteOnce
      existingClaim: ""
      mountPath: /bitnami/rabbitmq/mnesia
      subPath: ""
      size: 8Gi
      annotations: {}



If you want to expose the port, you can modify the service configuration type: NodePort, and you can specify the exposed port yourself.

    service:
      type: NodePort

      portEnabled: true
      distPortEnabled: true
      managerPortEnabled: true
      epmdPortEnabled: true
      ports:
        amqp: 5672
        amqpTls: 5671
        dist: 25672
        manager: 15672
        metrics: 9419
        epmd: 4369
      portNames:
        amqp: "amqp"
        amqpTls: "amqp-ssl"
        dist: "dist"
        manager: "http-stats"
        metrics: "metrics"
        epmd: "epmd"

      nodePorts:
        amqp: "31672"
        amqpTls: "31671"
        dist: "31673"
        manager: "31674"
        epmd: "31419"
        metrics: "31369"



    ![helm deploy rabbitmq](6b44e99974d17195ee2722671aabdc1f.png)

Deployment service

    helm install my-rabbitmq rabbitmq -n default


3.helm persistent designated server and persistent mount deployment

pvccreation

    tee ci/default/rabbitmq-data-local-path-values.yaml <<EOF

    nameOverride: rabbitmq-data-local-path

    size: 1Gi
    storageClassName: local-path


    EOF


    helm upgrade rabbitmq-data-local-path ./pvc/ -f ./pvc/ci/ci-values.yaml -f ./pvc/ci/default/rabbitmq-data-local-path-values.yaml -i -n default
    kubectl label node gem-yxyw-t-c02 rabbitmq.default=true


    tee ci/ci-values.yaml <<EOF
    image:
      registry: docker.io
      repository: bitnami/rabbitmq
      tag: 3.9
      debug: false
      pullPolicy: IfNotPresent
      pullSecrets: []

    affinity:
      nodeAffinity:
        requiredDuringSchedulingIgnoredDuringExecution:
          nodeSelectorTerms:
          - matchExpressions:
            - key: rabbitmq.default
              operator: In
              values:
              - "true"
    persistence:
      enabled: true
      existingClaim: rabbitmq-data-local-path

    service:
      enabled: true
      type: NodePort
    EOF


    ![helm deploy rabbitmq](6b44e99974d17195ee2722671aabdc1f.png)

Start service

    helm upgrade rabbitmq ./rabbitmq/ -f ./rabbitmq/values.yaml -f ./rabbitmq/ci/ci-values.yaml -i -n default

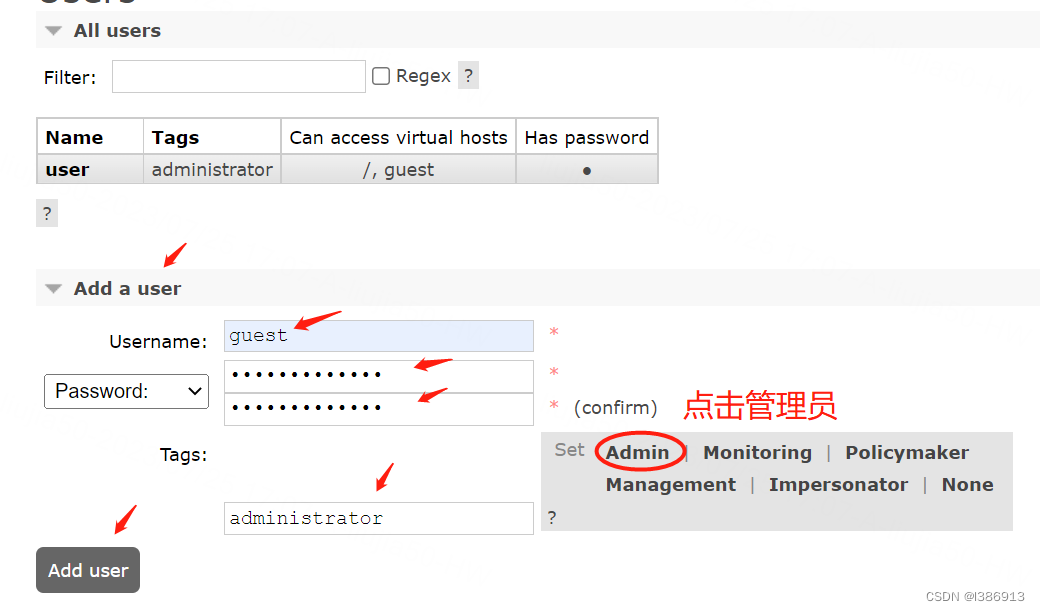

Create rabbitmq user

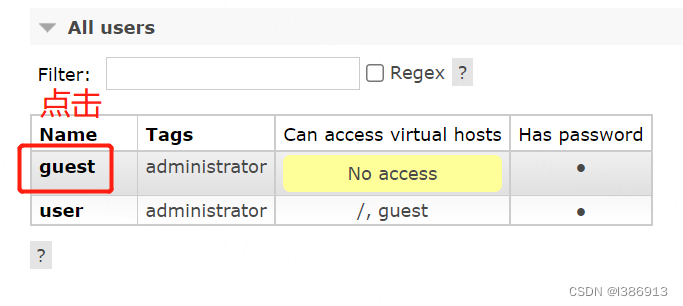

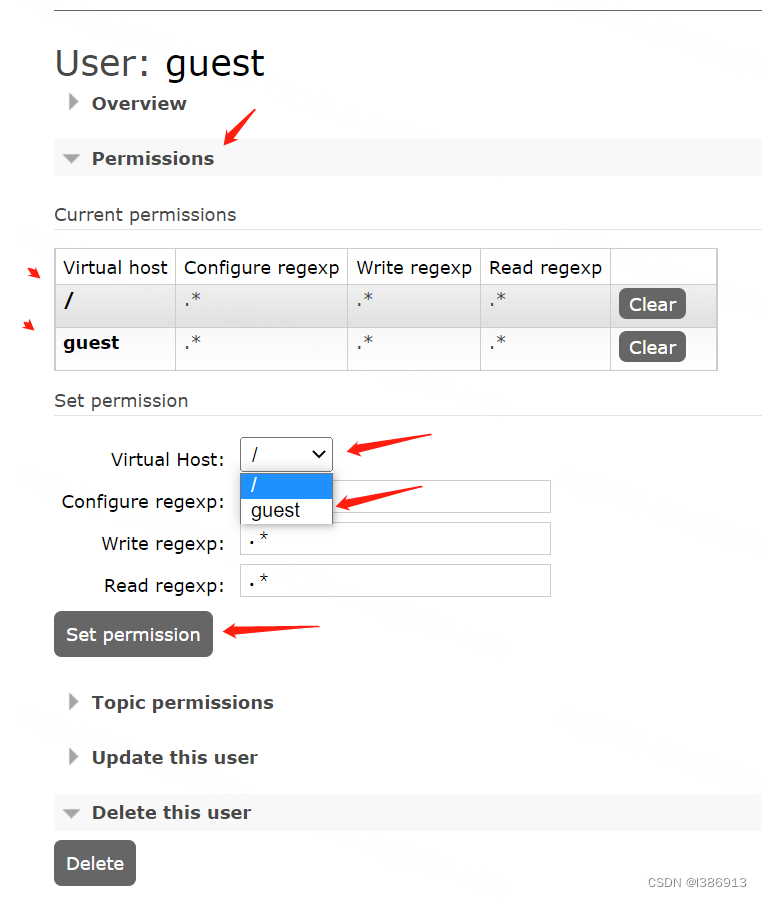

and set login access permissions
