2. Study clock in on the 10th

Table of contents:

• 2. Study clock in on the 10th
• 1. RocketMQ Overview
• • development path
• RocketMQ concept terminology
• 2. RocketMQ installation and configuration
• • Environment setup and testing
• RocketMQ management commands

For some explanations of MQ (Message queue) message queue , you can read my original article Learning RabbitMQ for Beginners

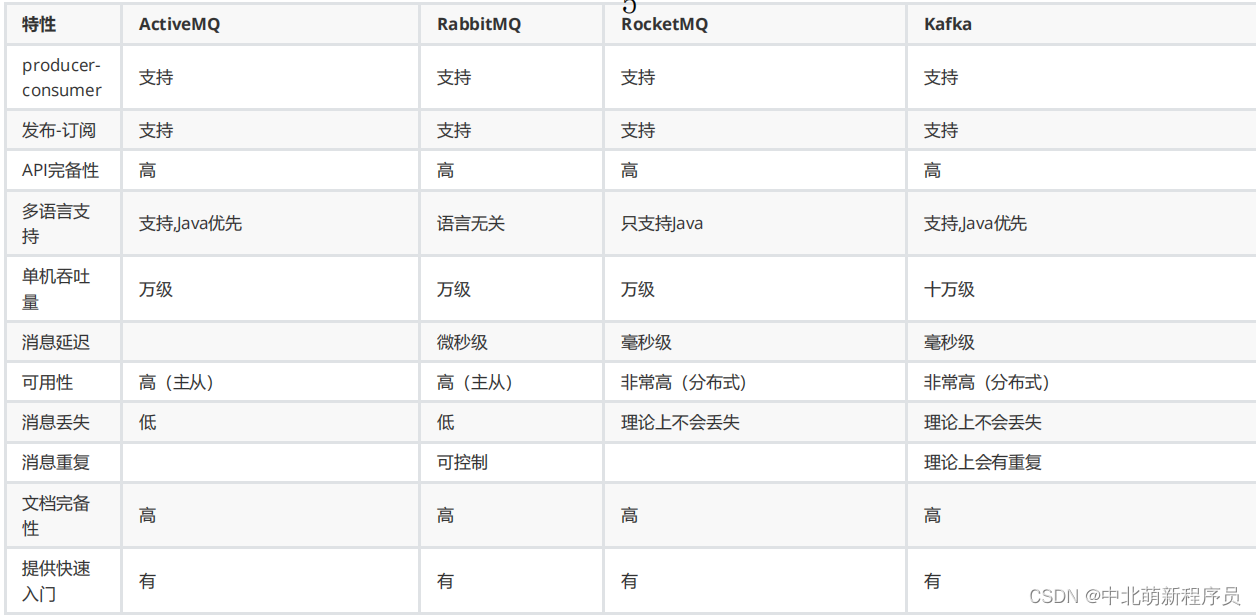

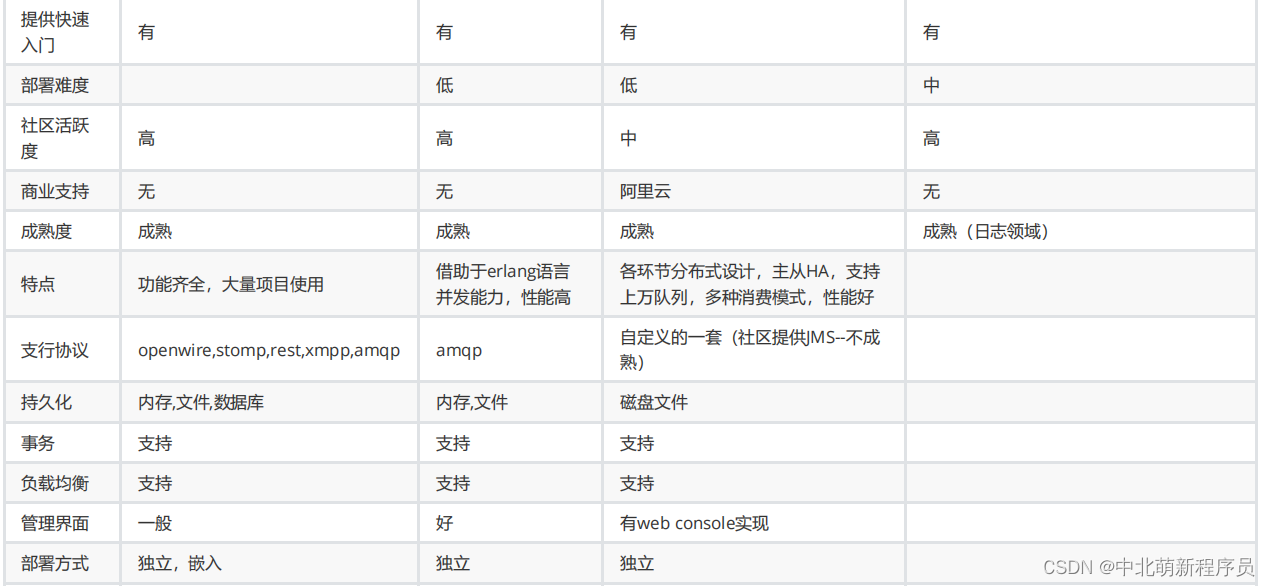

Comparison of major MQ products

1. RocketMQ Overview

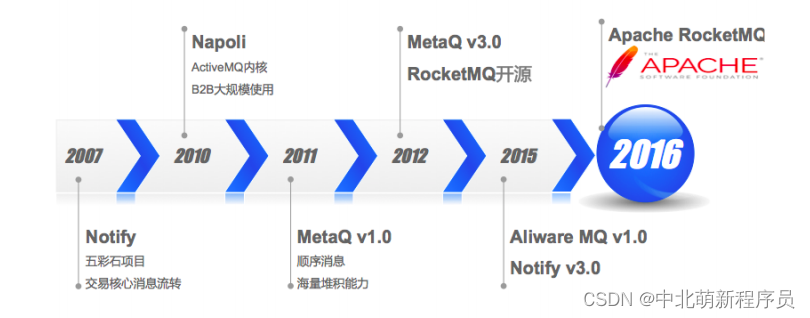

development path

RocketMQ concept terminology

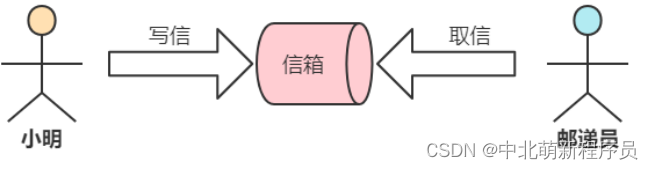

• Producers and consumers
  Producers are responsible for producing messages. Generally, the business system is responsible for producing messages. The consumer is the backend system, which is responsible for consuming messages.

• Message Model (Message Model)

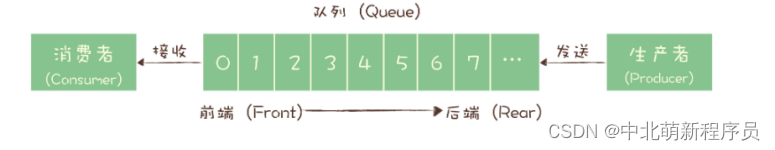

  The message model mainly includes the queue model and the publish-subscribe model. RabbitMQ uses the queue model, as shown in the figure below.

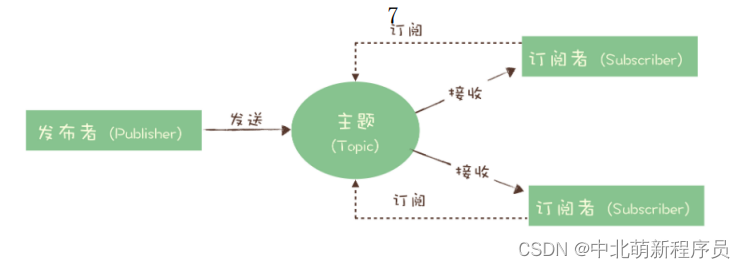

  RocketMQ uses the publish-subscribe model. The model is shown in the figure:

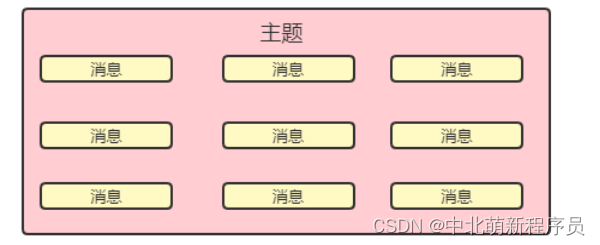

• Topic

Represents a collection of messages of a type. Each topic contains several messages. Each message can only belong to one topic. It is the basic unit of RocketMQ for message subscription.

• Broker Server

The message relay role is responsible for storing and forwarding messages.

• Name Server

The name service management proxy server broker is equivalent to a management organization.

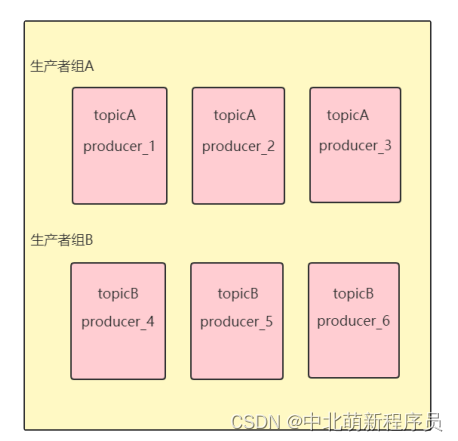

• Producer Group

  is a collection of Producers of the same type. This type of Producers sends the same type of messages and has consistent sending logic.

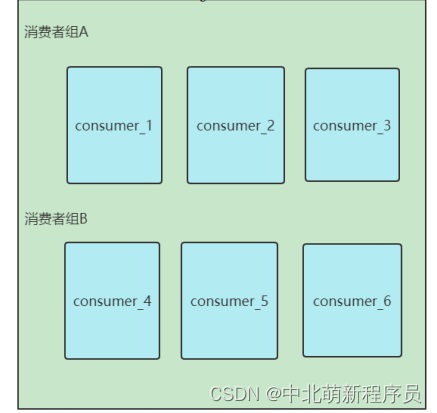

• Consumer Group

A collection of consumers of the same type. This type of Consumer usually consumes the same type of messages and has consistent consumption logic.

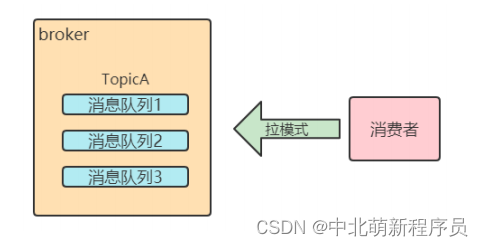

• Pull Consumer

A type of Consumer consumption. The application usually actively calls the Consumer's message pull method to pull messages from the Broker server. The initiative is controlled by the application. Once the batch of messages is obtained, the application starts the consumption process.

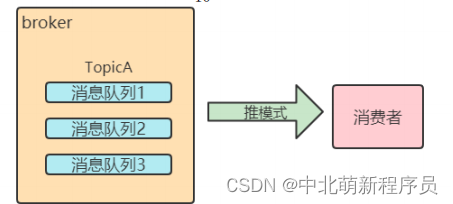

• Push Consumer

A type of consumer consumption. In this mode, the Broker will actively push the data to the consumer after receiving it. This consumption mode generally has high real-time performance.

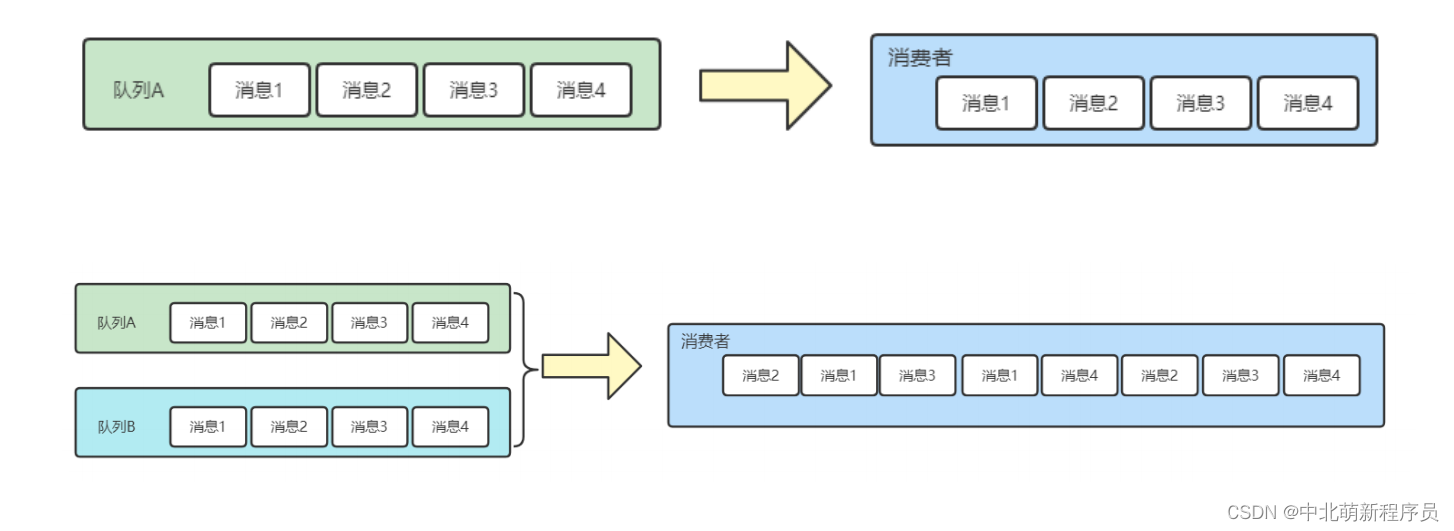

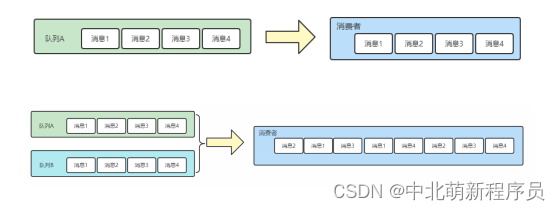

• Normal Ordered Message
  ! [Insert picture description here](https://img-blog.csdnimg.cn/direct/9178444faae640769fb8dca7c5633f2b.png
  In normal ordered consumption mode, consumers pass through the same message queue (Topic partition , called Message Queue) The messages received are in order, but the messages received by different message queues may be out of order.

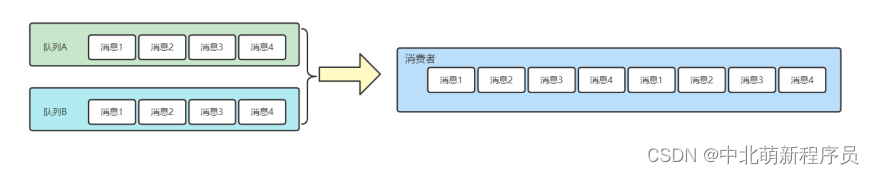

• Strictly Ordered Message

  In the strictly ordered message mode, all messages received by consumers are in order.

2. RocketMQ installation and configuration

Environment setup and testing

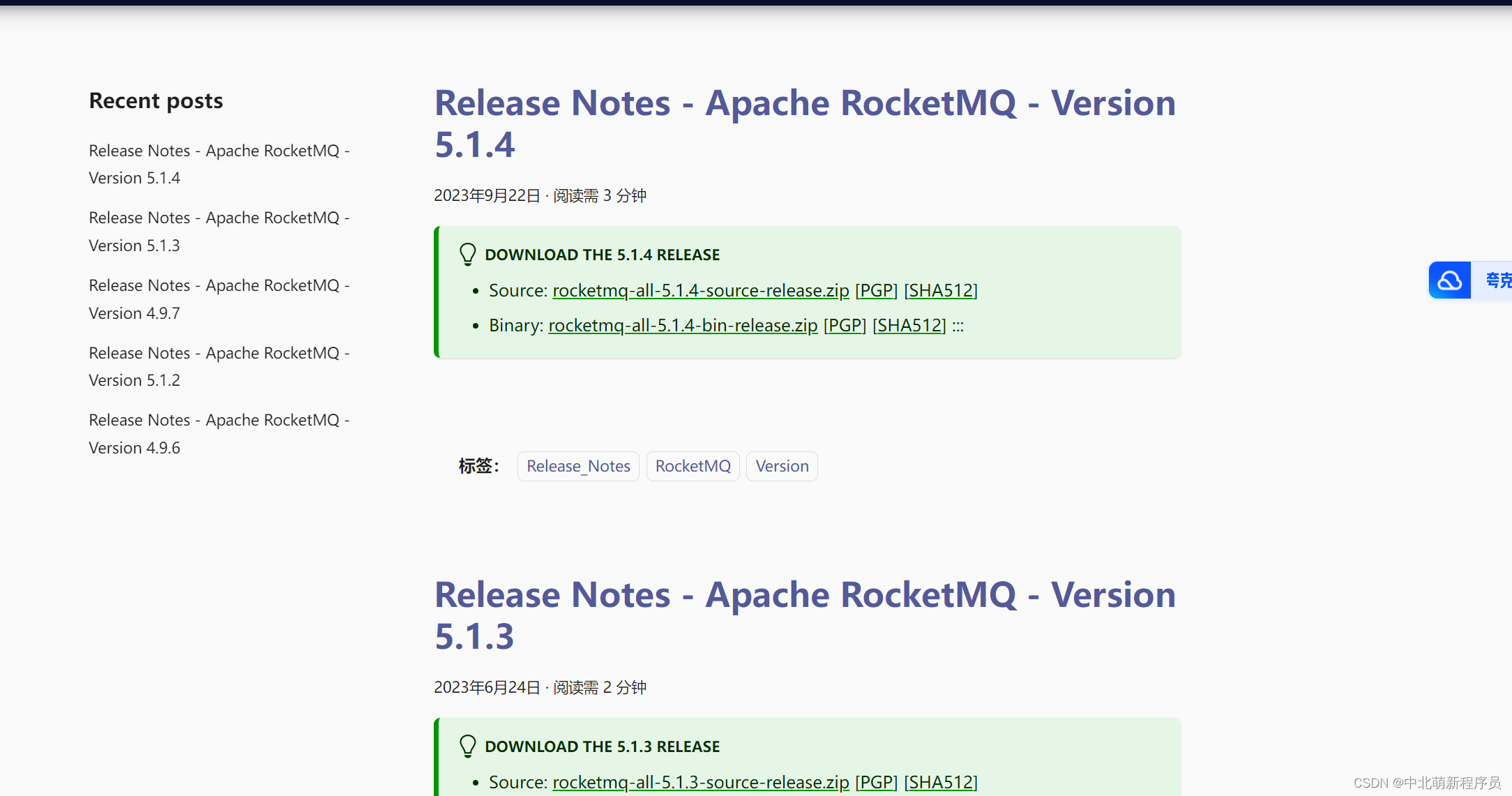

Download address: [https://rocketmq.apache.org/zh/release-notes/](https://rocketmq.apache.org/zh/release-notes/)

Select the second binary installation

1. First upload the file to the virtual machine using the rz command
2. Unzip the file unzip rocketmq-all-5.1.4-bin-release.zip (your own version)
3. Rename the folder name to facilitate modification of mv rocketmq-all-5.1.4-bin-release rocketmq-5.1.4
4. Move the folder to the /usr/local directory mv rocketmq-5.1.4 /usr/local
5. Modify the environment variable
   vim /etc/profile


    export JAVA_HOME=/usr/local/jdk-11.0.11/
    export PATH=$PATH:$JAVA_HOME/bin
    export ROCKETMQ_HOME=/usr/local/rocketmq-5.1.4(自己的版本)
    export PATH=$PATH:$ROCKETMQ_HOME/bin


6. Start NameServer nohup sh mqnamesrv &
7. Start broker nohup sh mqbroker -n localhost:9876

RocketMQ management commands

mqadmin help command name

• Start namesrv and broker

./mqnamesrv #Start nameserver
./mqbroker -n localhost:9876 -c /opt/alibaba-rocketmq/conf/broker.conf #Start broker

• #Start broker

tail -f ~/logs/rocketmqlogs/namesrv.log
#View the log
tail -f ~/logs/rocketmqlogs/broker.log
#View the log

• Add new topic

mqadmin updateTopic -n localhost:9876 -c DefaultCluster -t topicWarning

• Check the status of a topic

mqadmin topicStatus -n localhost:9876 -t topicWarning

• View all consumer groups

mqadmin consumerProgress -n localhost:9876

• View all topics

mqadmin topicList -n localhost:9876

• Delete topic

mqadmin deleteTopic -n localhost:9876 -c DefaultCluster -t topicWarning

• Close namesrv and broker services

mqshutdown namesrv
mqshutdown broker
